Demo RAD-Galaxy2

General showcase

Short description what will be demonstrated

• VividCAN1:
  Display Vehicle data (see: Demo_Datalogger)
  Slider to change background light
  -> this information will be send to second VividCAN2 to remotely change background light.

  CAN -> CAN2ETH GW -> ETH tapping -> ETH2CAN GW

  Push buttons to send TC10 commands to SFP modules of RAD-GigaStar

• Fire3 / Red2 or neoVI-Connect:
  Simulating Vehicle data
  Embedded CAN-ETH01 Gateway

• RAD-Galaxy2:
  Tap device


  1. ETH1 (Logger) <-> ETH2 (GigaStar)

  2. AE01 (GiagaStar out) <-> AE02 (GigaStar in)streams


• RAD-GigaStar / RAD-GigaStar2:
  AE simulation (saw signal)
  - TX on AE01
  - RX on AE02.
  Embedded CAN-ETH-CAN Gatewaying for CAN1/2 (see Demo_VCAN42-Ind_CAN-ETH-GW) -> to dispaly Vehicle data on VividCAN2


• VividCAN2:
  Display same Vehicle data as VividCAN1 but received ofer ethernet and ETH-CAN-GW Backlight can be adjusted localy or over VividCAN1 slider

• VehicleSpy connected to:
  Variant1:
  RAD-GigaStar / RAD-GigaStar2 (device hosting on ETH1) to display Vehicle data (CAN->ETH)
  saw signal from RAD-GigaStar (AE1 and AE2) and on RAD-Galaxy2 (AE3 and AE4 - only receive side)
  Variant2:
  Red2/Fire3 to show original CAN data and CAN-ETH gateway data
  Variant3:
  Attention: using neoVI-Connect allows only one LAN connection either to VSpy or as ETH connection to RAD-Galaxy2.

• Wireshark (with ICSCAP):
  Monitoring the whole, tapped streams LUA-File and Coloring availbable.

Requirements

• "Remote" Datalogger (e.g. neoVI-RED2/Fire3/Connect)
  with CoreMini Setup and replay files File1 and File2
• Two VividCAN with CoreMini Setup
• RAD-Galaxy2
• RAD-GigaStar with CoreMini Setup
  (embedded CAN-ETH-CAN Gateway and device hosting)

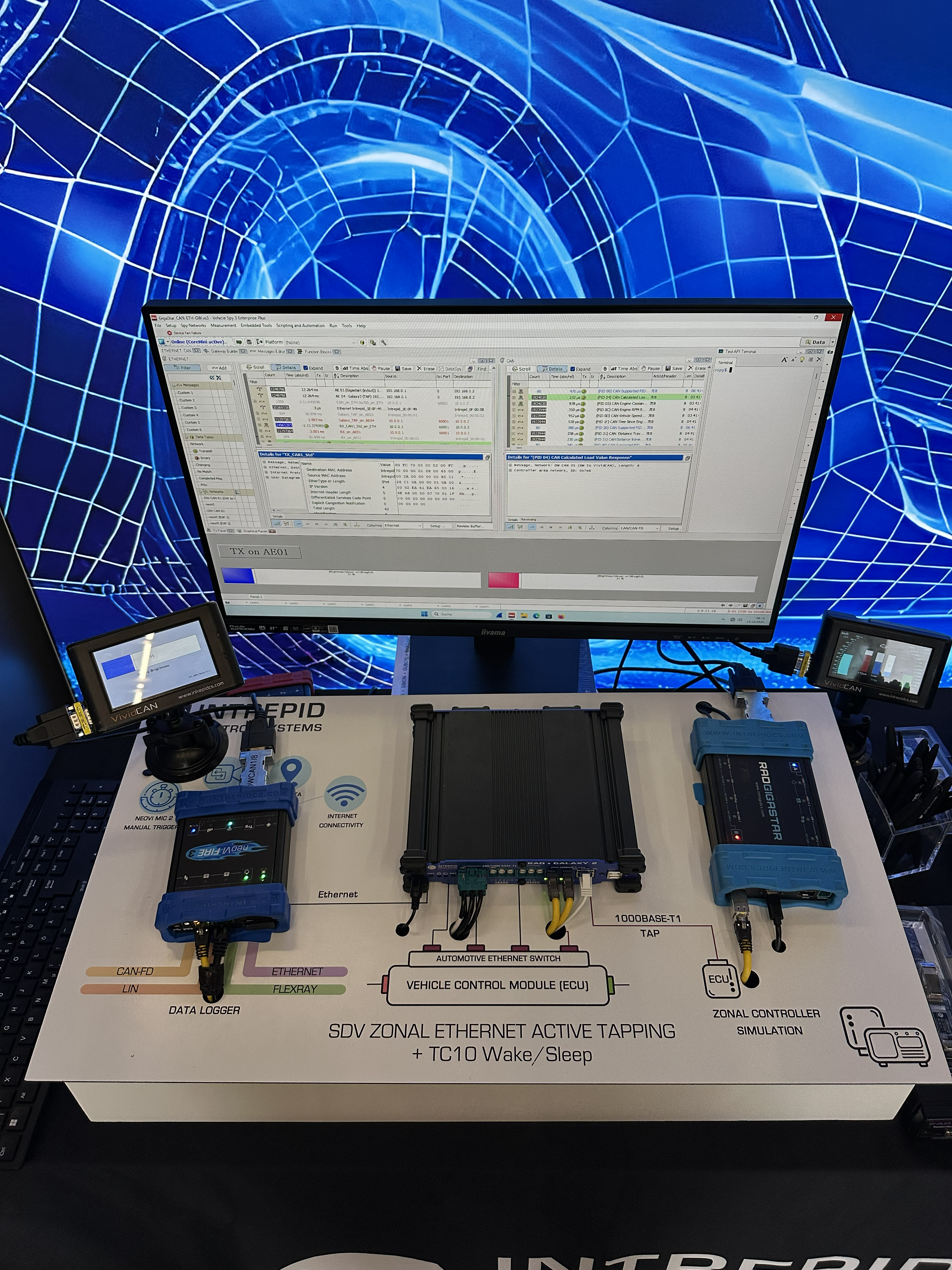

Hardware Setup

Red2 & Fire3

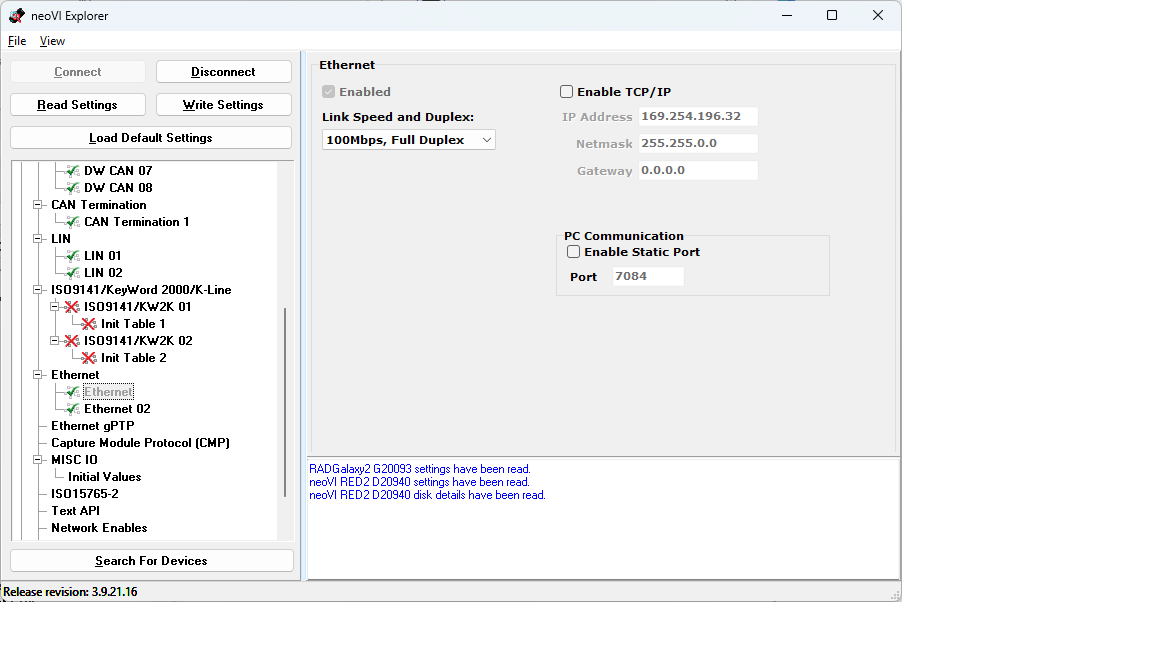

Set ETH01 to 100Mbps full duplex for this demo

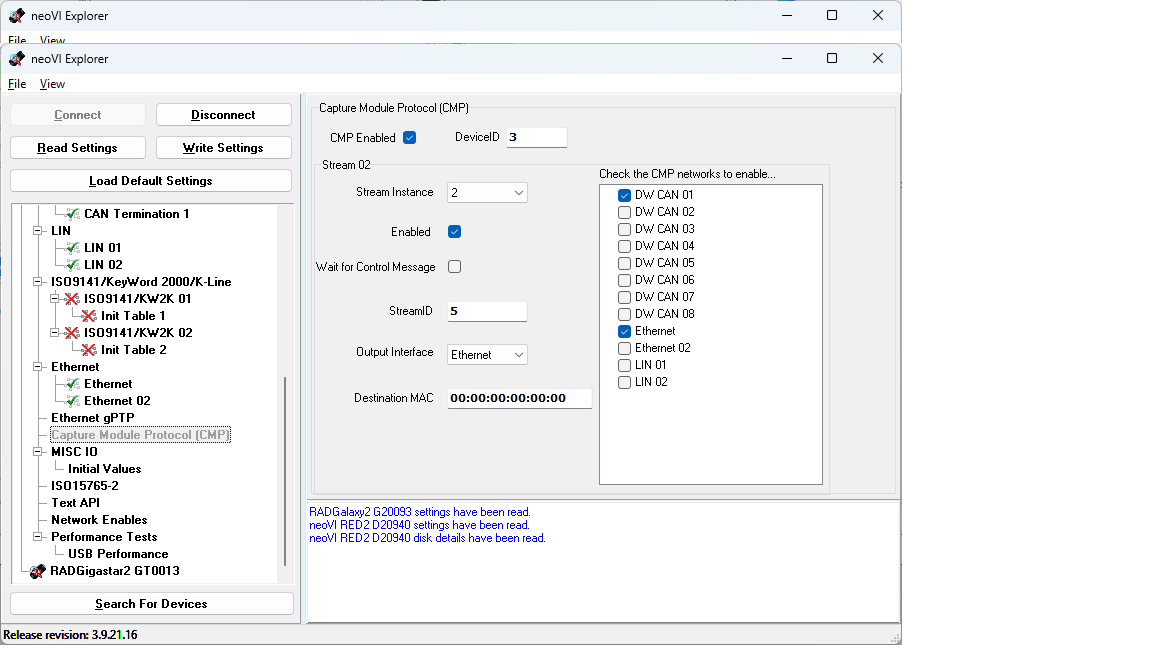

Enable CMP on Red2/Fire3 - stream could be shown in ICSCAP

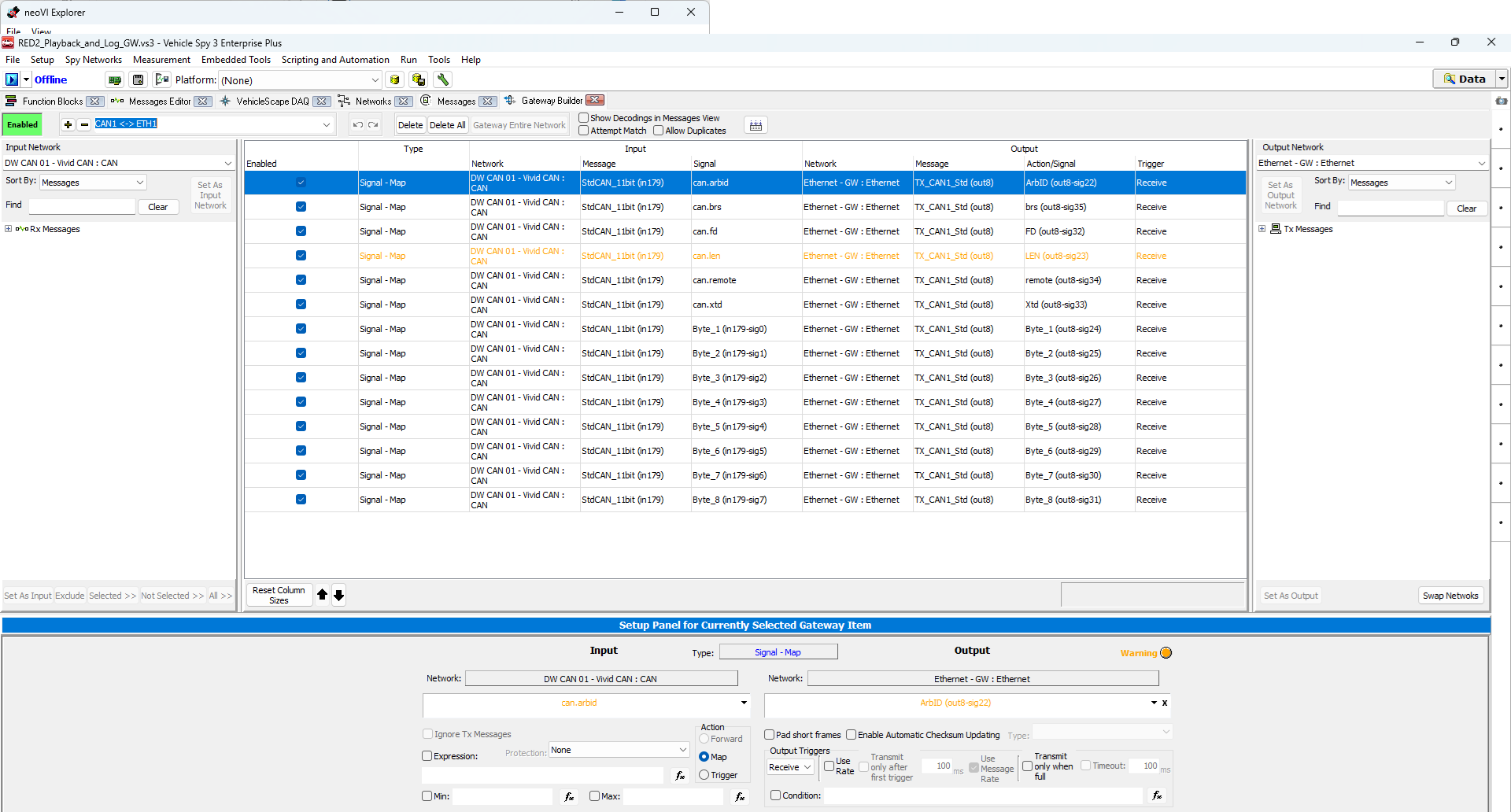

Enable embedded Gateway and download to CoreMini, disable afterwards before going onlin.

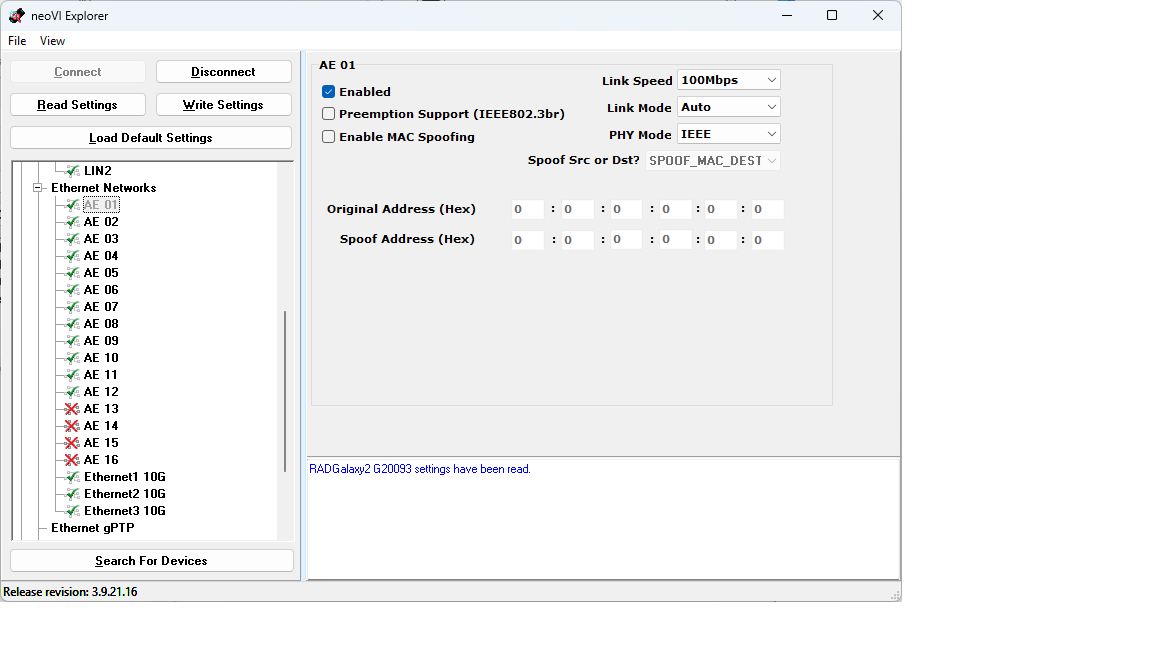

RAD-Galaxy2

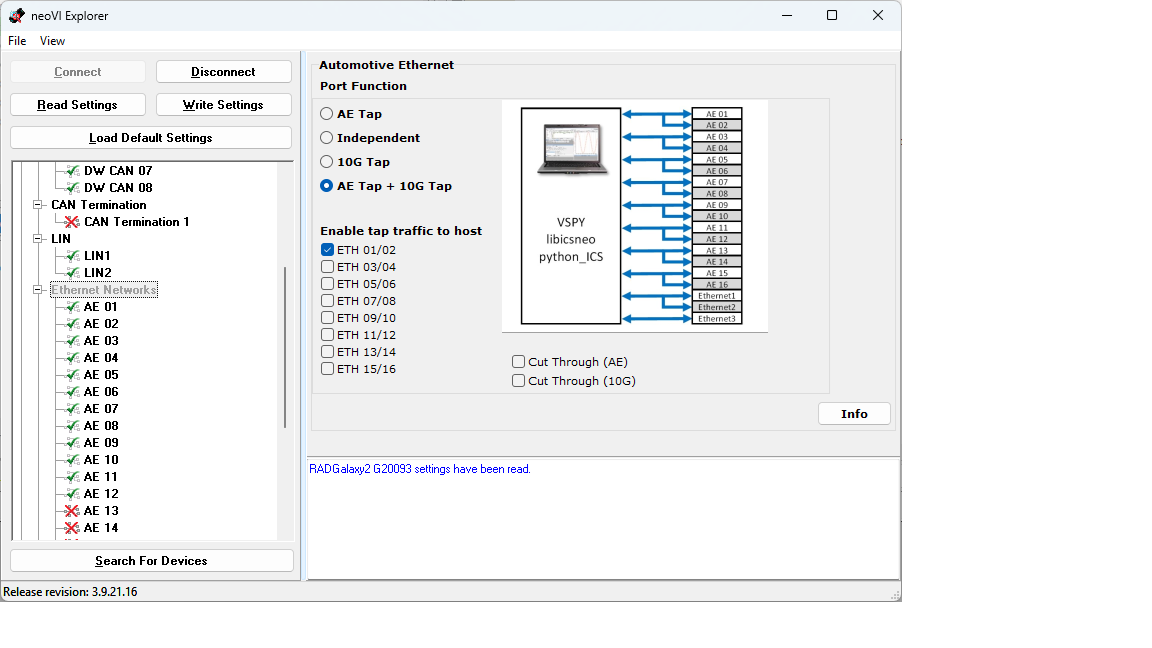

Tapping and forwarding AE01/AE02
Enableling AE01/AE02 + ETH01/ETH02/ETH03 - for Demo only 100Mbps

RAD-Gigastar2

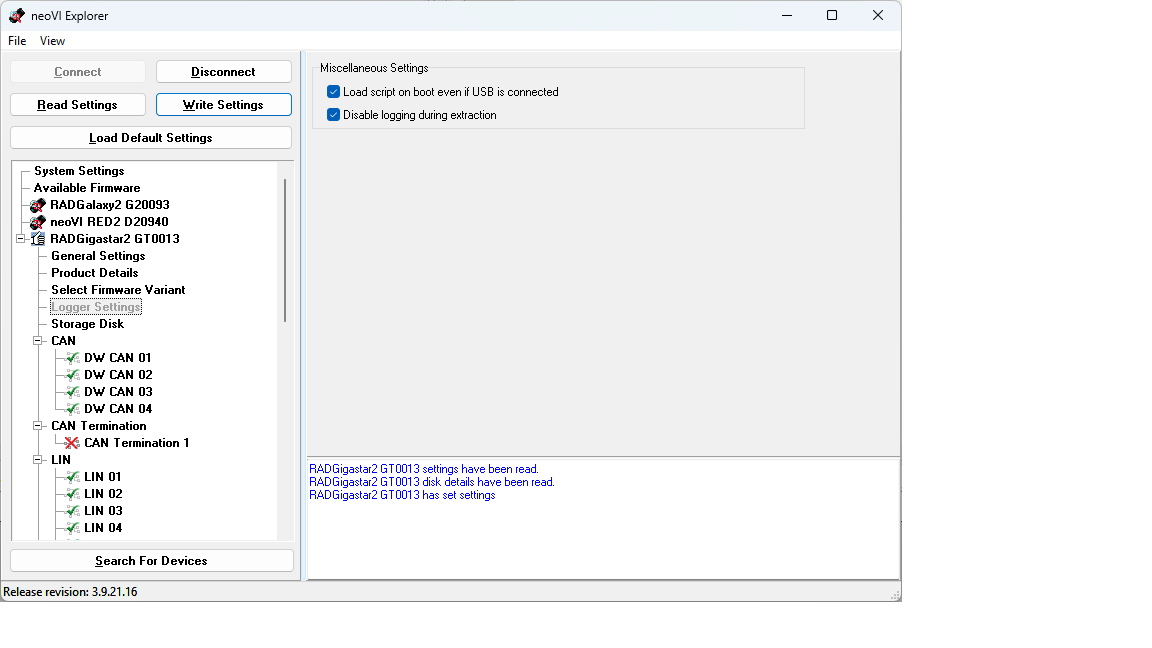

Enable CoreMini if USB is connected to runn Script anyway

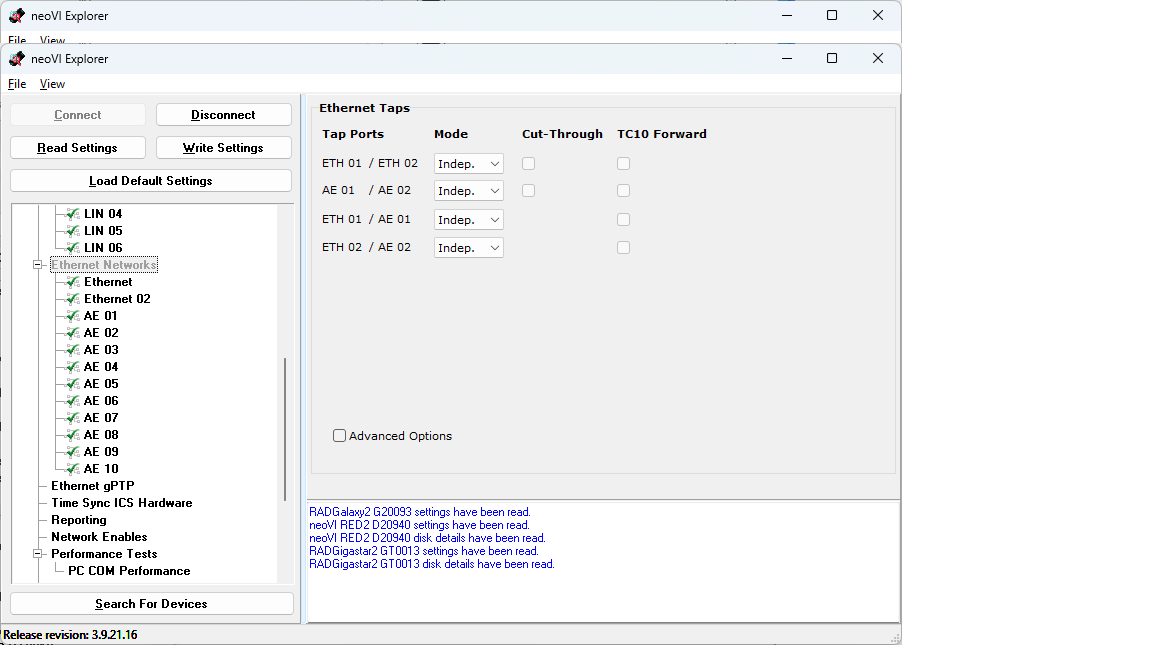

Use independant networks on GigaStar (no tapping)

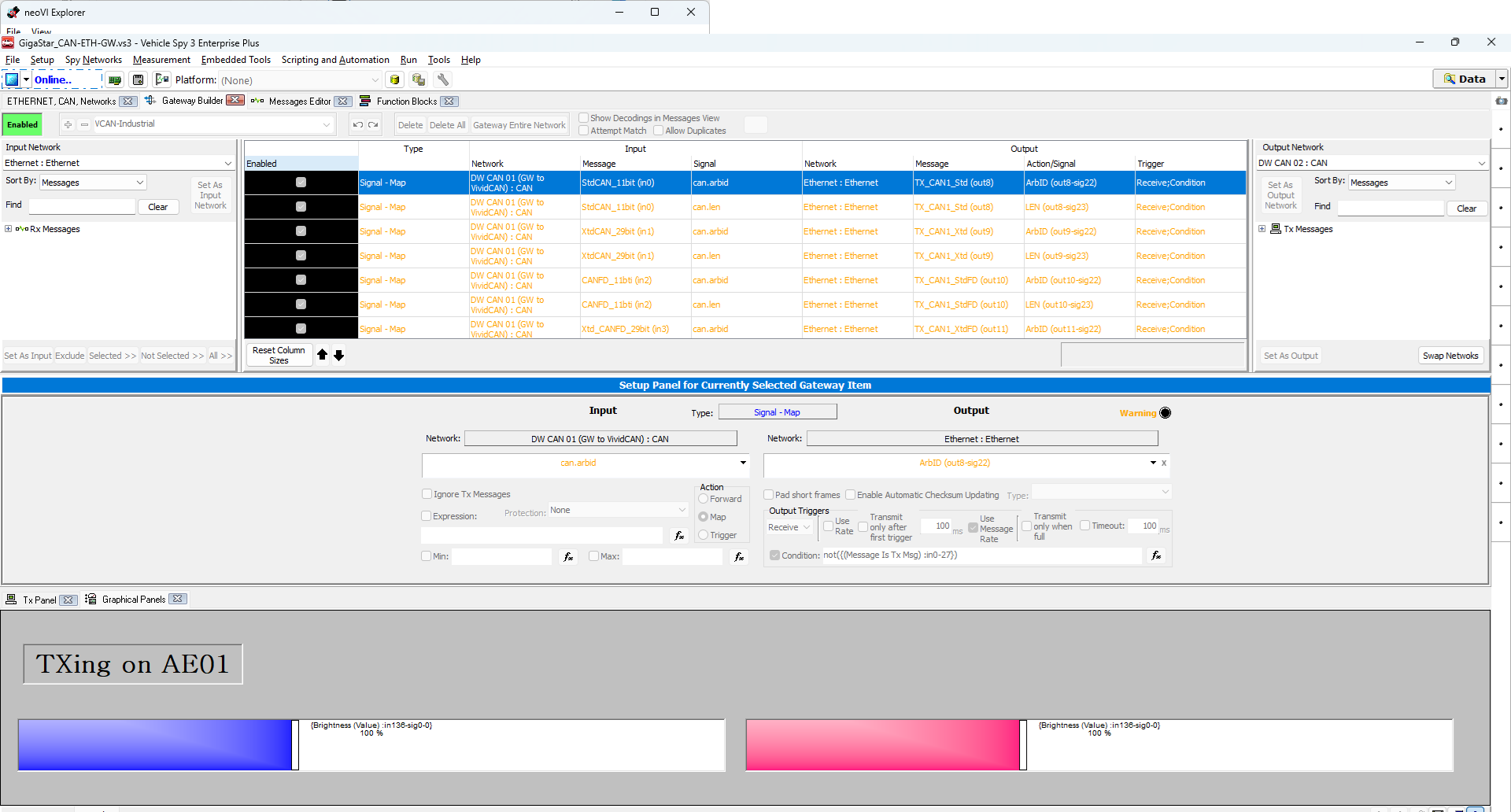

Download embedded Gateway only to CoreMini, disable afterwards if running online

Connections

• Red2/Fire3 (DWCAN01) -> VividCAN1 + Power
• Red2/Fire3 (ETH1) -> RAD-Galaxy2 (ETH1)
• RAD-Galaxy2 (AE3) -> RAD-GigaStar (AE1)
• RAD-Galaxy2 (AE4) -> RAD-GigaStar (AE2)
• RAD-Galaxy2 (ETH3) -> RAD-GigaStar (SFP-ETH1)
• RAD-GigaStar (DWCAN01) -> VividCAN2 + Power

Setup I

Showcase - Vehicle Spy

Individual description of setup

Setup II

If multiple setups are available

Showcase - Wireshark

Individual description of setup

(updated 08.12.2025)
