CMP Demo

Find Repository

Picture of Demosetup

General showcase

Demonstration of Intrepid device (neoVI-Fire3, neoVI-Red2)sending out data via ASAM CMP protocol.

Requirements

Used devices, cabeling ... Maybe adding links to devices (WEB) and files (Internal)
e.g.

[Remote datalogger](https://intrepidcs.com/products/data-loggers/) (neoVI-RED2/Fire3/Connect)

Remote datalogger (e.g. neoVI-RED2/Fire3/Connect)\

Setup I

Setup first build with VSpy 3.9.19.17
Hardware setting: Picture of Demosetup In principle there is no special setup needed. Anyway CoreMini has to run to autostart CMP transmission.

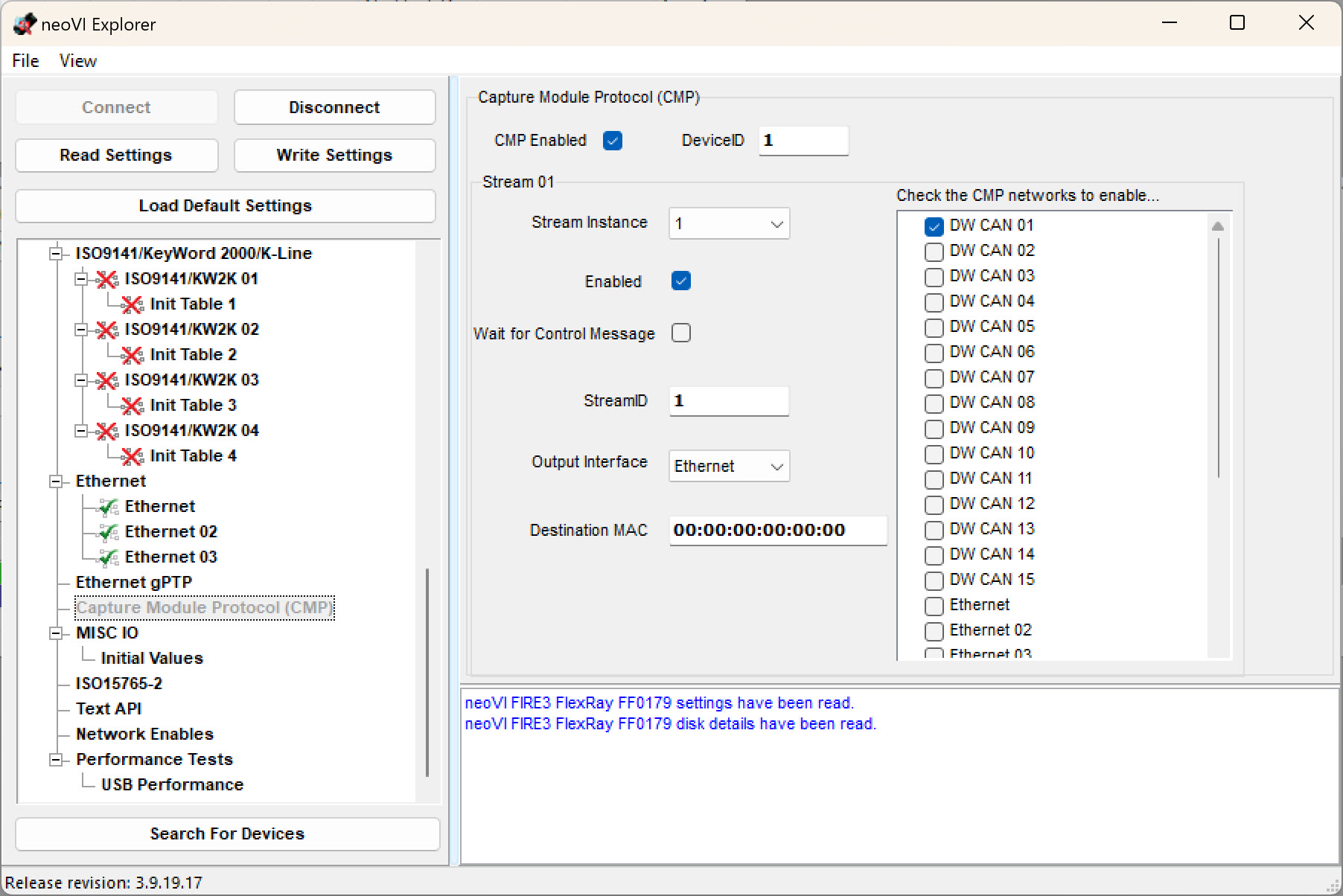

Upload CoreMini

Within DEWESoft add a ne CMP device New CMP device

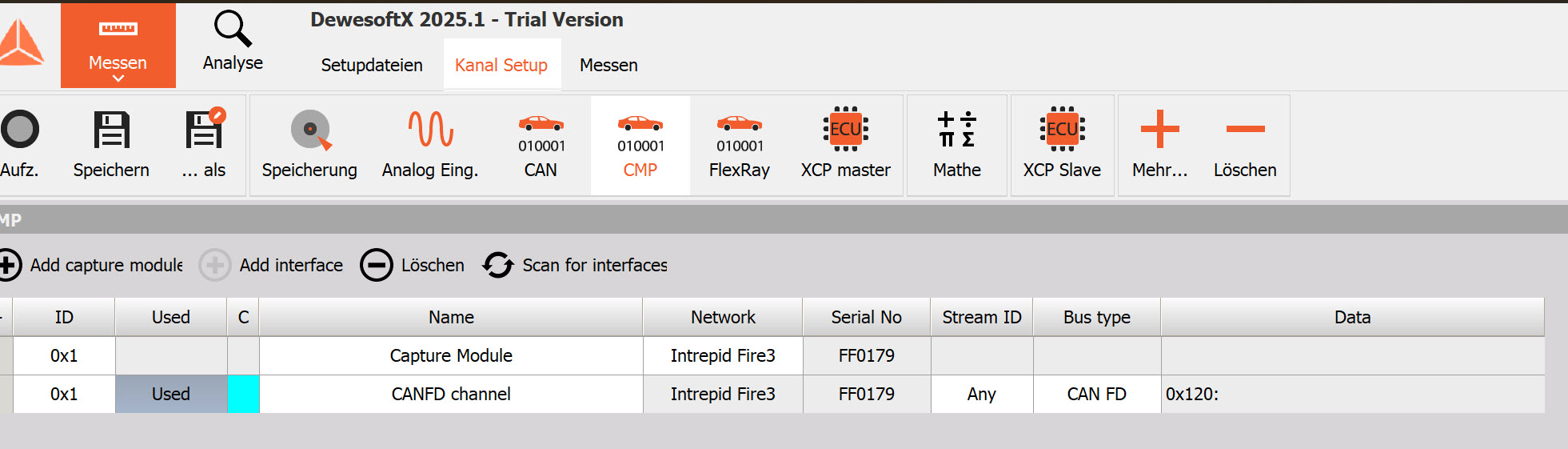

Scan for the Capturemodule and interface Scan interface

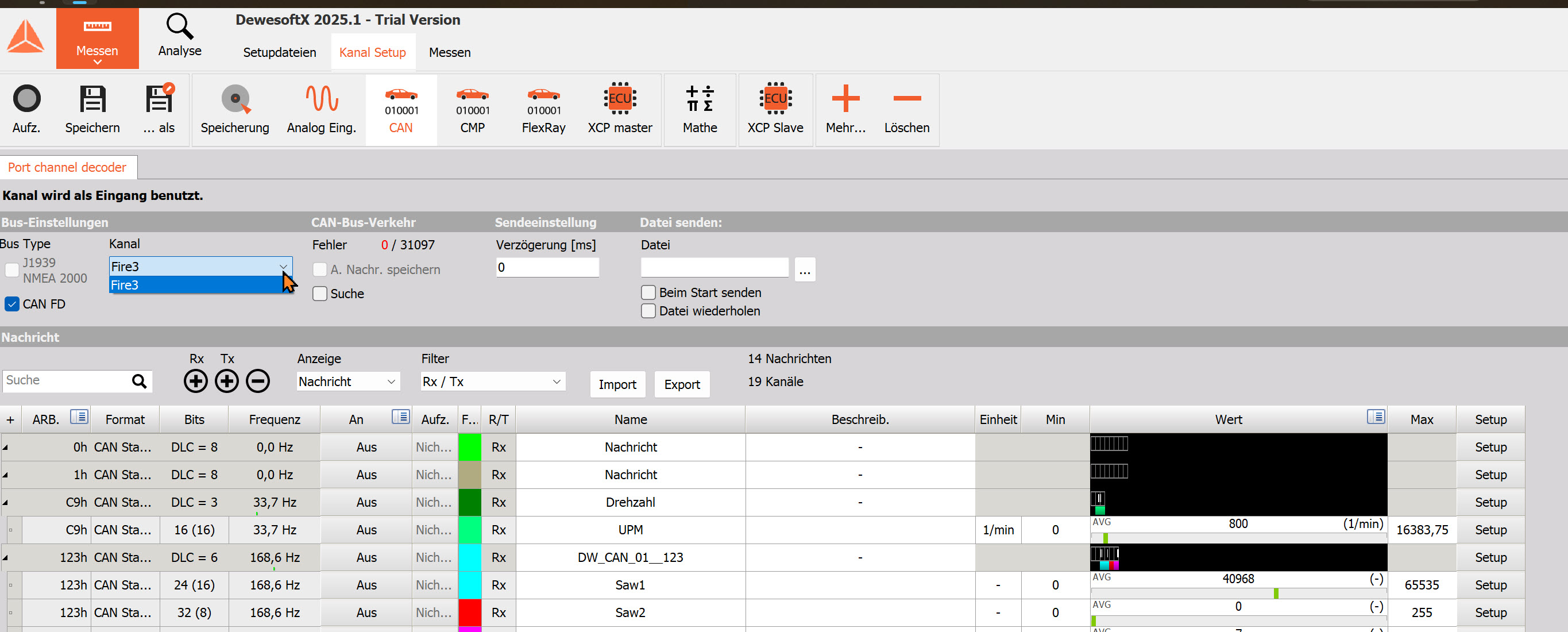

Select the CANFD interface and load the Database select CAN interface

Showcase I

  • neoOBDsim connected to Fire3/RED2
  • Fire3/Red2 receive CAN data
  • Fire3/red2 transmit CMP on ETH1
  • Additional SW/HW receiving CMP stream - DEWEsoft<\b>, Vigem Logger, WireShark

Setup II

If multiple setups are available

Showcase

Individual description of setup
