# <u>CMP Demo</u>
#### [Find Repository](https://git.intrepidcs.de/explore/repos)

![Picture of Demosetup](./resources/pics/Init_new_repository.bmp)
## General showcase
Demonstration of Intrepid device (neoVI-Fire3, neoVI-Red2)sending out data via [ASAM CMP](https://www.asam.net/standards/detail/cmp/) protocol.

## Requirements
Used devices, cabeling ...
Maybe adding links to devices (WEB) and files (Internal)\
e.g.
```
[Remote datalogger](https://intrepidcs.com/products/data-loggers/) (neoVI-RED2/Fire3/Connect)

```
[Remote datalogger](https://intrepidcs.com/products/data-loggers/) (e.g. neoVI-RED2/Fire3/Connect)\


## Setup I

Setup first build with VSpy 3.9.19.17\
<u>Hardware setting:</u>
![Picture of Demosetup](./resources/pics/CMP_settings.jpg)

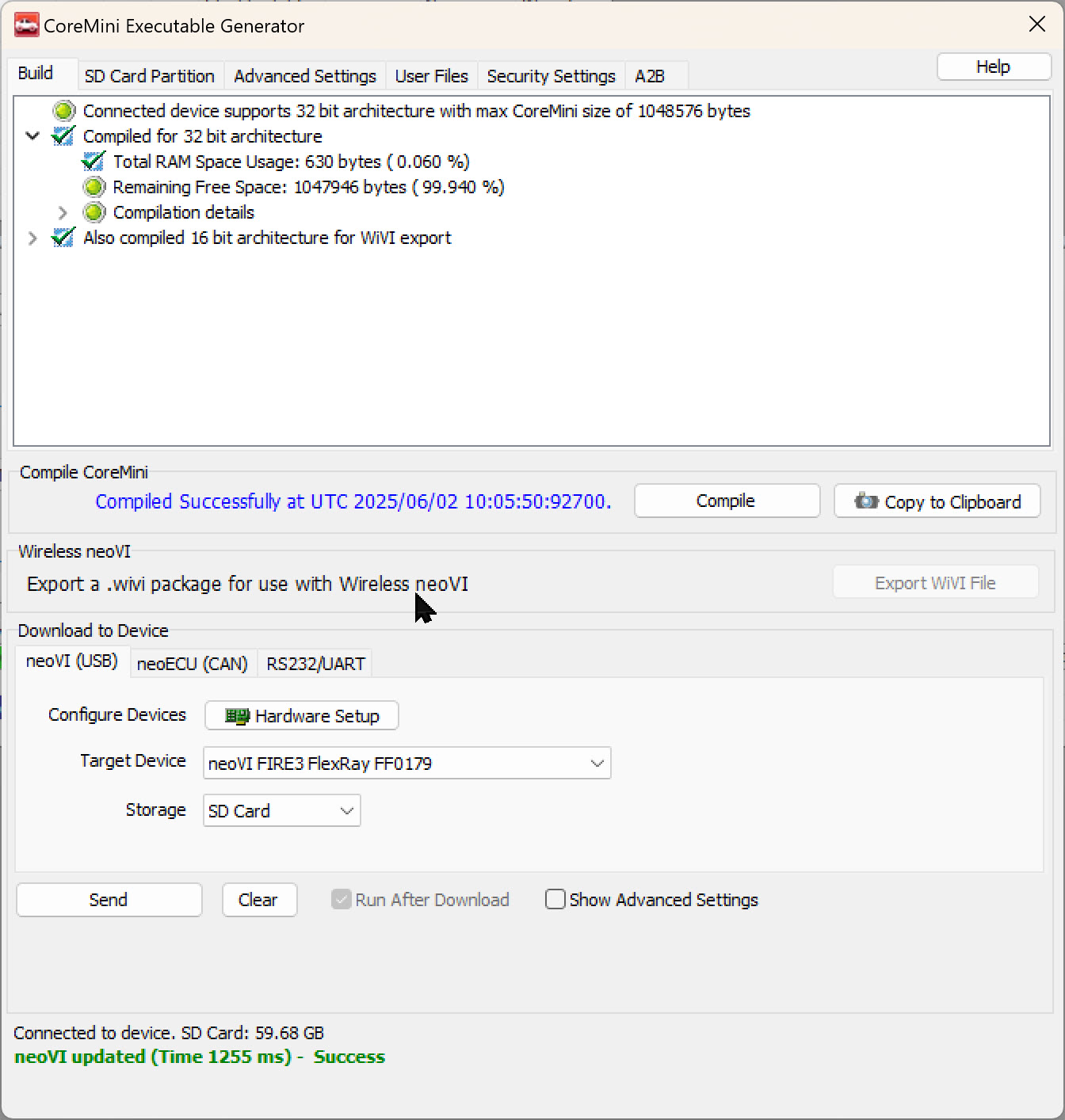

In principle there is no special setup needed. Anyway CoreMini has to run to autostart CMP transmission.\
![Upload CoreMini](./resources/pics/CoreMiniConsole.jpg)

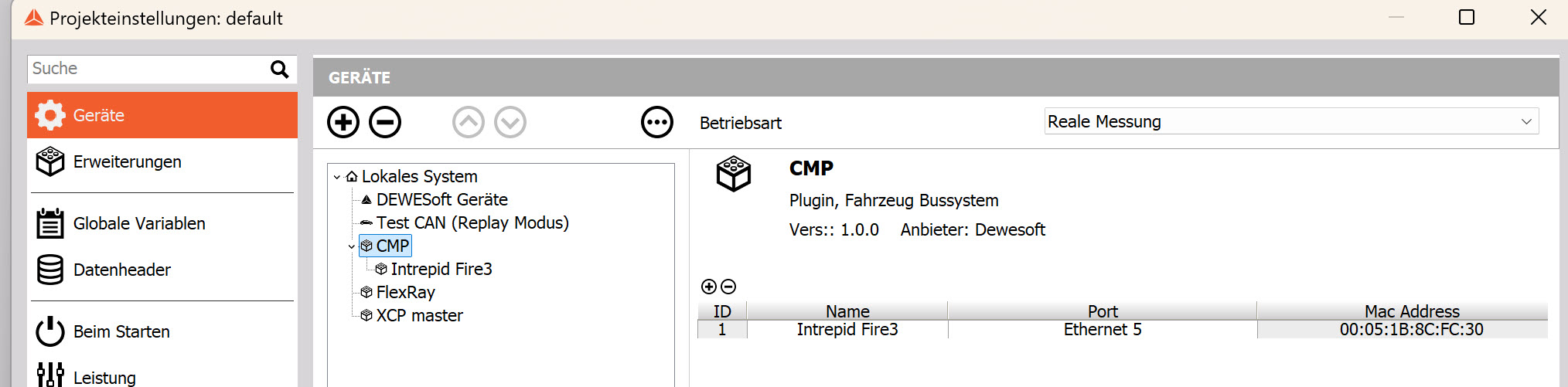

Within DEWESoft add a ne CMP device
![New CMP device](./resources/pics/NewCMPDevice.jpg)

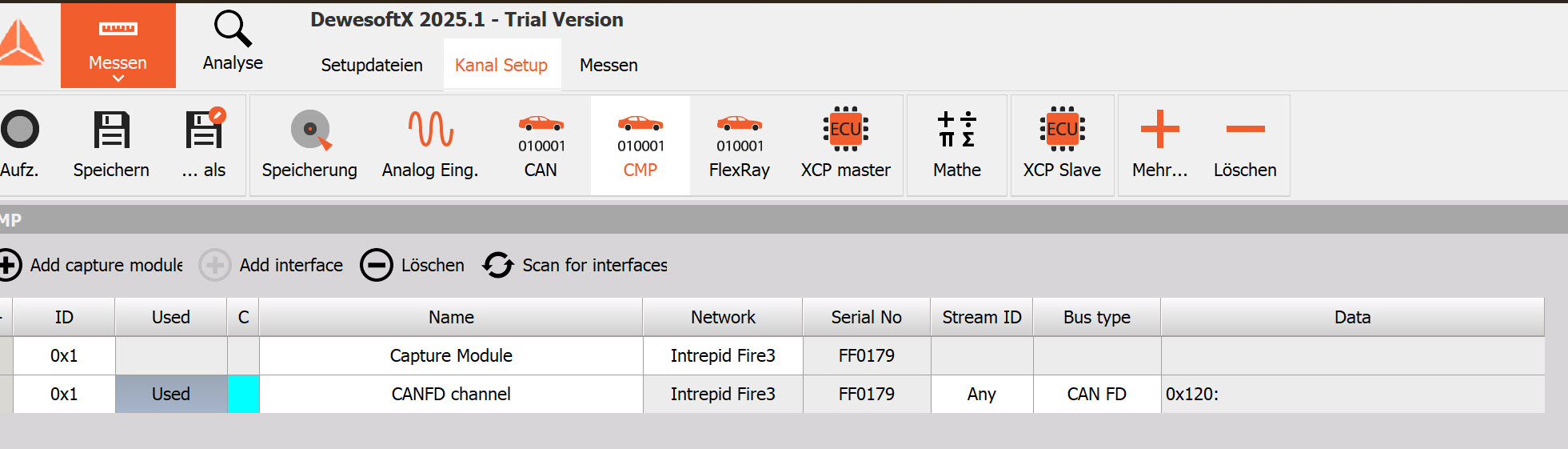

Scan for the Capturemodule and interface
![Scan interface](./resources/pics/ScanInterface.jpg)

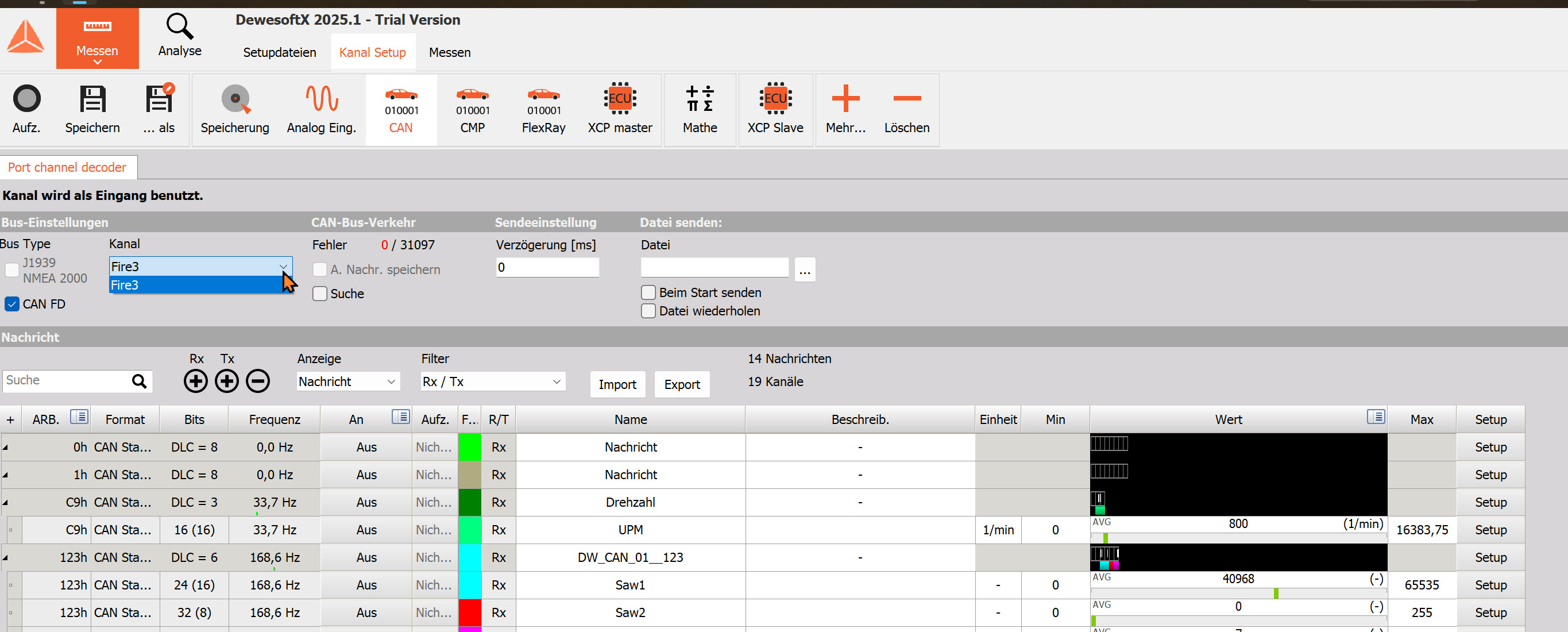

Select the CANFD interface and load the [Database](./resources/OBDsim.dbc)
![select CAN interface](./resources/pics/SelectCAN.jpg)
### Showcase I
* neoOBDsim connected to Fire3/RED2
* Fire3/Red2 receive CAN data
* Fire3/red2 transmit CMP on ETH1
* Additional SW/HW receiving CMP stream - <b>DEWEsoft<\b>, Vigem Logger, WireShark

## Setup II
If multiple setups are available
### Showcase
Individual description of setup
