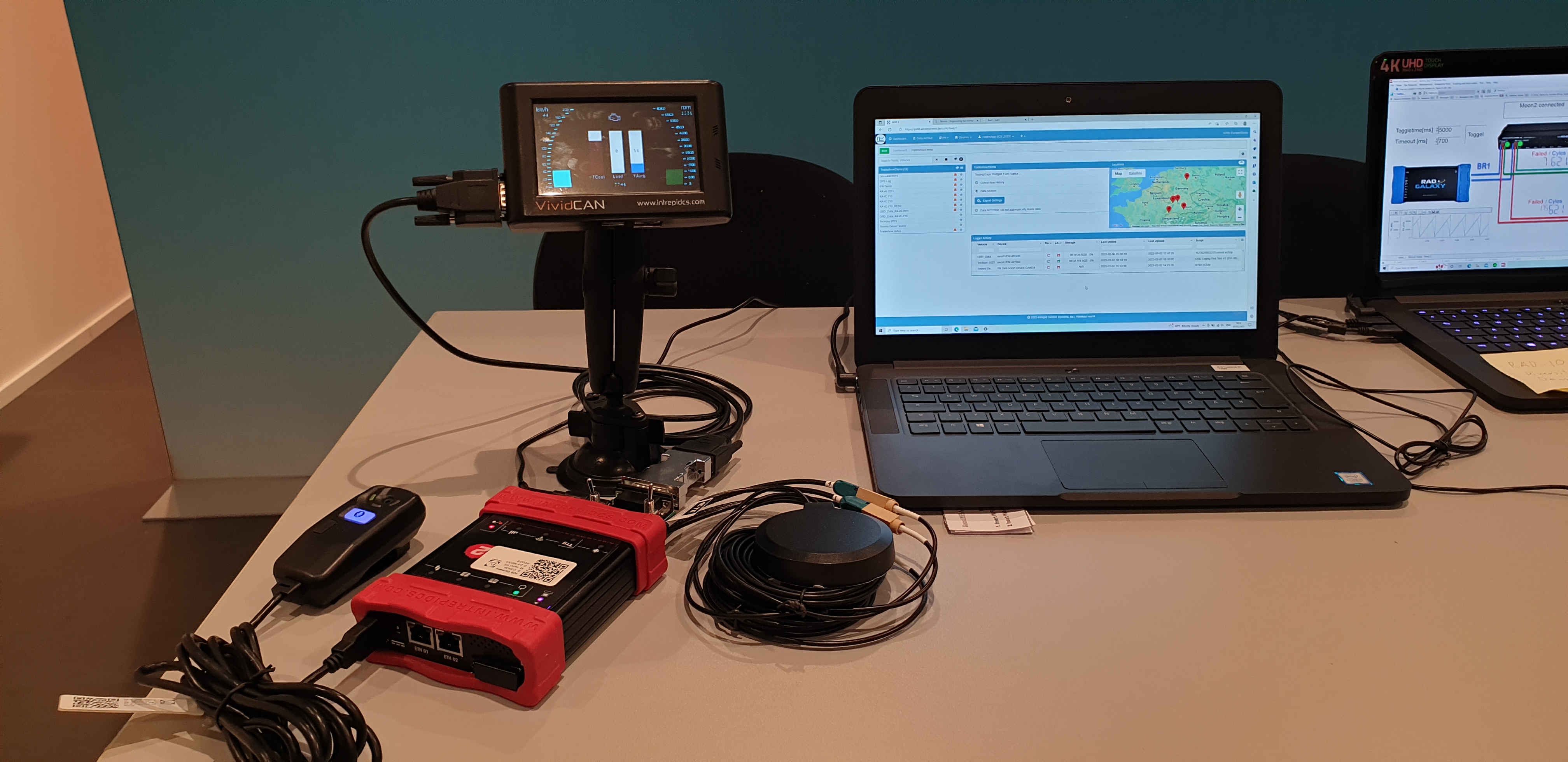

Standalone tabeltop demo.
Demonstrating a Datalogger that requests/receives Diagnostic data (in the demo its OBD J1979)
but UDS/KWP/XCP/FlexRay ... will be the same.\ Depending on a given Trigger, e.g. neoVI-MIC2 push button, the data will be uploaded to wireless neoVI server.
The uploaded data can be shown on the PC then.

Requirements

Remote datalogger (neoVI-RED2/Fire3/Connect)
- running replayfiles (File1 and File2)
VividCAN
- running visualization script
neoOBD2-Sim (actually only as power supply, further Setups may use Demosignals too)
- with powersupply
- neoVI-RED2 and VividCAN will be powered thru OBD
neoVI MIC 2 (voice recording and triggering)
ValueCAN OBD-II Cable (DB-9F to OBD-II)
ValueCAN Network Splitter Cable (DB-9F to 2x DB-9M)
one DSUB9 gender changer (female)

Setup

OBD2sim as Vehicle simulator (not replaying data cause of missing SD card)
RED2/Fire3 as Datalogger (in setup replaying the vehicle Data)
Setup: RED2_Playback_and_Log.vs3
Replay files: File1 and File2
VividCAN Demo_TEX22.vs3
receives OBD PIDs and displays them
neoVI-MIC2 triggers a collection

OBD and GPS Collection.vs3zip (V4a_91415)

Showcase

Loggerdemo request and acquiring in-vehicle-data OBD data. The data will beuploaded to wireless neoVI server.

Setup

Take care that Baudrate is set correctly and other Networks should be disabled.
Upload Setup file
