RED2_Playback_and_Log.vs3 + VividCAN Demo_TEX22.vs3

Showcase

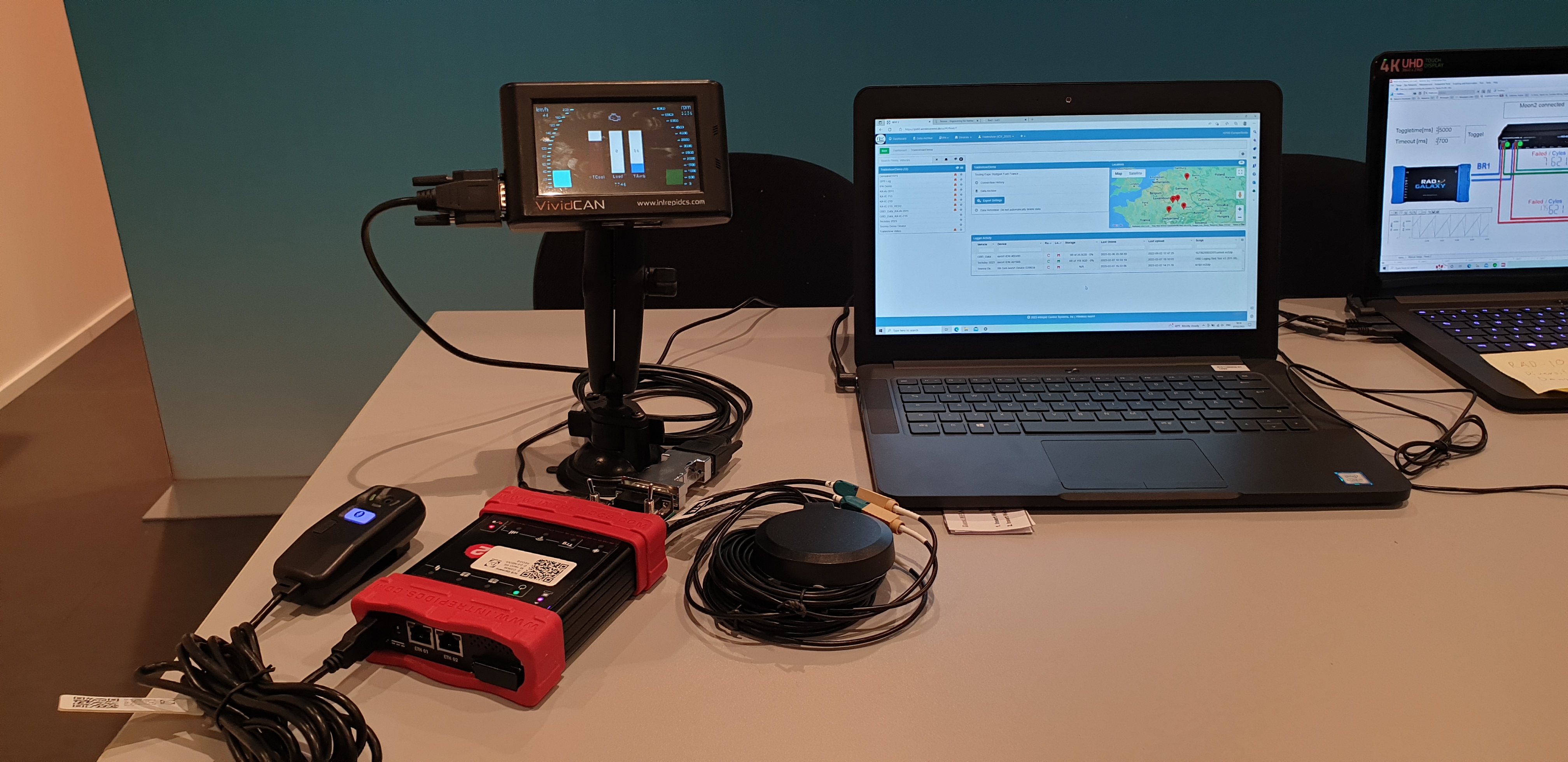

Standalone tabeltop demo.
Demonstrating a Datalogger that requests/receives Diagnostic data (in the demo its OBD J1979)
but UDS/KWP/XCP/FlexRay ... will be the same.\ Depending on a given Trigger, e.g. neoVI-MIC2 push button, the data will be uploaded to wireless neoVI server.
The uploaded data can be shown on the PC then.

Requirements

• Remote datalogger (neoVI-RED2/Fire3/Connect)

  • running replayfiles (File1 and File2)

• VividCAN

  • running visualization script

• neoOBD2-Sim (actually only as power supply, further Setups may use Demosignals too)

  • with powersupply
  • neoVI-RED2 and VividCAN will be powered thru OBD

• neoVI MIC 2 (voice recording and triggering)

• ValueCAN OBD-II Cable (DB-9F to OBD-II)

• ValueCAN Network Splitter Cable (DB-9F to 2x DB-9M)

• one DSUB9 gender changer (female)

Setup

• OBD2sim as Vehicle simulator (not replaying data cause of missing SD card)
• RED2/Fire3 as Datalogger (in setup replaying the vehicle Data)
  Setup: RED2_Playback_and_Log.vs3
  Replay files: File1 and File2
• VividCAN Demo_TEX22.vs3
  receives OBD PIDs and displays them
• neoVI-MIC2 triggers a collection

OBD and GPS Collection.vs3zip (V4a_91415)

Showcase

Loggerdemo request and acquiring in-vehicle-data OBD data. The data will beuploaded to wireless neoVI server.

Setup

Take care that Baudrate is set correctly and other Networks should be disabled.
Upload Setup file
